HEAVY DUTY RAW EDGE, MOULDED NOTCH, NARROW SECTION, MULTIPLE V-BELT

Gates Logo

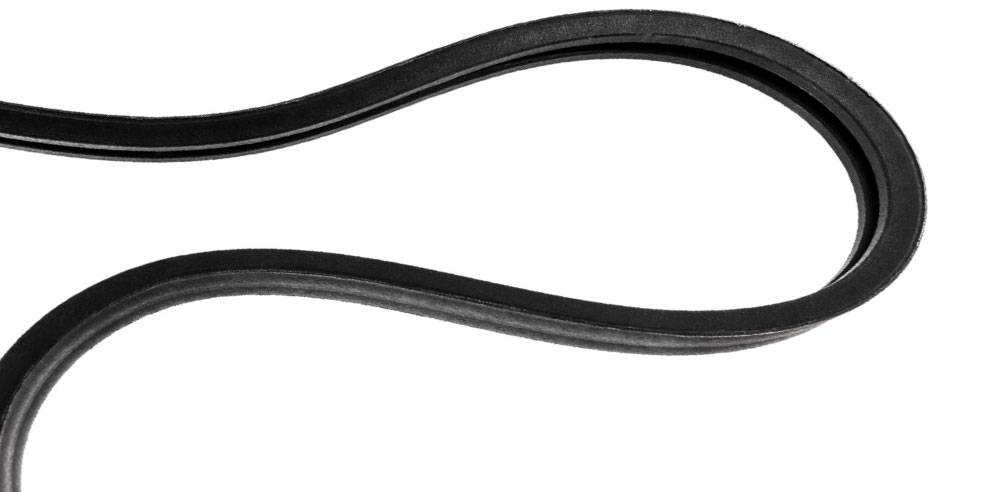

Gates PowerBand® belts are engineered for drives that are subject to pulsating loads, shock loads or extreme vibrations. By joining several Quad-Power® 4 V-belts together the Quad-Power® 4 PowerBand® offers a maintenance-free solution for drives where single belts vibrate, turn over or jump off the pulleys. It comes with all of the advantages of the single belt: this SERVICE FREE EPDM belts are designed to extend product life time eliminating costly downtime for re-tensioning, repair and replacement. Furthermore these belts offer a broad temperature operating range.

CONSTRUCTION

  • Minimal-elongation polyester tensile cords allow for stable tension over the entire lifetime.
  • PowerBand® construction is built as one solid unit, controlling the belt-to-belt distance and preventing sideways bending. This provides excellent resistance against vibrations and shock loads.
  • Flat back construction reduces noise when used with a back side idler or tensioner

BENEFITS

  • Service-free PowerBand® V-belt with high stability on the toughest drives.
  • Halogen-free belt.
  • Perfect fit on standard ISO/DIN (for XPZ/XPA/XPB) or RMA (for 3VX/5VX) V-pulleys.
  • Manufactured to DIN7753, ISO4184, RMA IP-22.
  • Savings in drive space and weight thanks to high transmission efficiency.
  • High stability and smooth running on the toughest drives.
  • Important design economies possible.
  • Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX.
  • RoHS 2 and REACH compliant.
  • Match system: all sizes meet Gates UNISET tolerances, they can be installed without matching.
  • Temperature range: -50° to +130°C.
gates quad power 4
Ordering Code
XPB2500/2
XPB - Section
2500 - Datum length (mm)
2 - Number of ribs
NOTE: For correct design and tensioning of the belt please use Gates DesignFlex® ProTM Drive design software, available on www.Gates.com/Europe.
Identification Durable blue marking indicating the belt type and white marking indicating the belt dimensions
Sections and nominal dimensions
Section Standard numbers of ribs Rib spacing/
Pitch (mm)
Width
(mm)
Height
(mm)
Length range
(datum length - mm)
2 3 4 5
XPZ X X X   12.0 10 8 800 - 3550
XPA X X     15.0 13 10 800 - 4000
XPB X X     19.0 16 13 1250 - 4750
3VX* X X X X 10.3 10 8 635 - 3555
effective length - mm
5VX* X X X X 17.5 13 10 1270 - 5080
effective length - mm
